Thick Film Chip Resistors, High Voltage


High Voltage Low VCR Thick Film Chip Resistor - HVRC Series

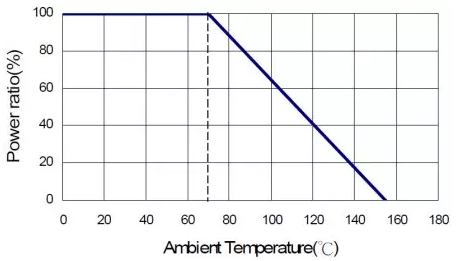

Derating Curve

High Voltage Low VCR resistor with the size from 1206 to 2512, resistance up to 500M ohm , offers Max overload to 4000V in 2512, 3000V in 2010.
Thick Film special design to achieve high working voltage and stability in SMD chip resistors. One of the key function resistors in a circuit is detecting high voltage by voltage dividing. Rated voltage and maximum working voltage are specified for each resistor, which should not be exceeded when it is used. This specification applies to all sizes of rectangular-type fixed chip resistors with Ruthenium-base as material. HVR series offers the high voltage which can reduce using the numbers of resistors. Save cost and space. Generally, the higher resistance is against higher voltage.

Scope

  • This specification applies to all sizes of rectangular-type fixed chip resistors with Ruthenium-base as material.

Features

  • Highly reliable multilayer electrode construction

  • Higher component and equipment reliability

  • Excellent performance at high voltage

  • Reduced size of final equipment

  • Low VCR

  • AEC-Q200 Compliance

  • IEC 62368-1:2018 Safety Certificate issued by UL Demko

Applications

  • Inverter

  • Outdoor Equipments

  • Converter

  • High Pulse Equipment

  • Automotive Industry

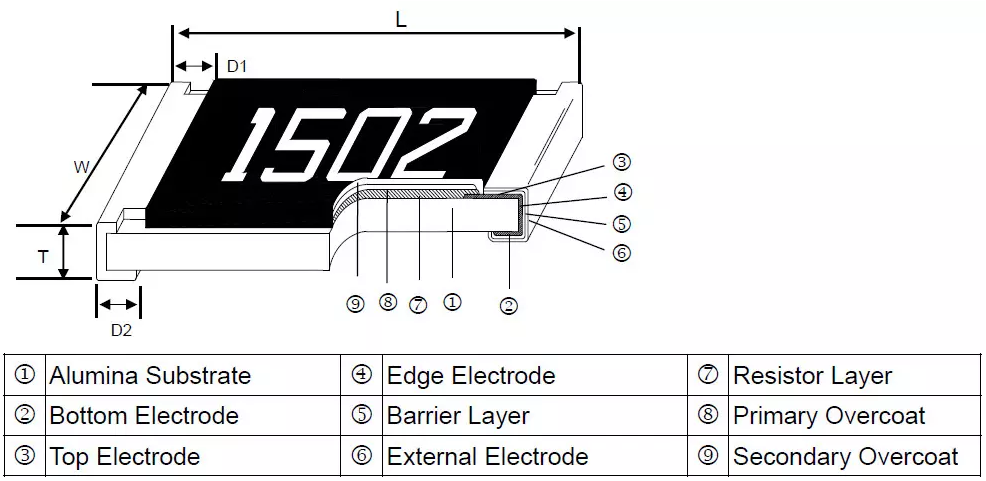

Construction

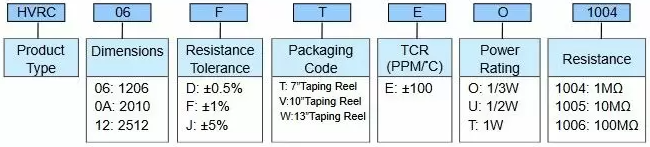

Part Numbering


Standard Electrical Specifications

Item
Type		Power Rating
at 70°C		Operating
Temp. Range		Max.
Operating Voltage		Max.
Overload Voltage		Resistance RangeTCR
(PPM/°C)		VCR
(PPM/V)
±0.5%
(E24、E96)		±1%
(E24、E96)		±5%
(E24)
HVRC06 (1206)1/3W-55 ~ +155°C1000V1500V100KΩ - 1MΩ100KΩ - 10MΩ100KΩ - 500MΩ±100<25
HVRC0A (2010)1/2W2000V3000V51KΩ - 1MΩ51KΩ - 20MΩ51KΩ - 500MΩ±100
HVRC12 (2512)1W3000V4000V30KΩ - 1MΩ30KΩ - 20MΩ30KΩ - 500MΩ±100

Operating Voltage=√(P*R) or Max. Operating Voltage listed above, whichever is lower.
Overload Voltage=2.5*√(P*R) or Max. Overload Voltage listed above, whichever is lower.
☑ Viking is capable of manufacturing the optional spec based on customer's requirement.
